Highway guardrail is a complete roadside safety system rather than a single steel beam. The beam profile, posts, spacers, terminals, fasteners, coating and installation geometry must work together according to the project design and applicable local standard.
This article provides a general purchasing and installation overview. Final design, installation spacing and acceptance requirements must always follow the project drawings, engineering assessment and regulations in the destination market.

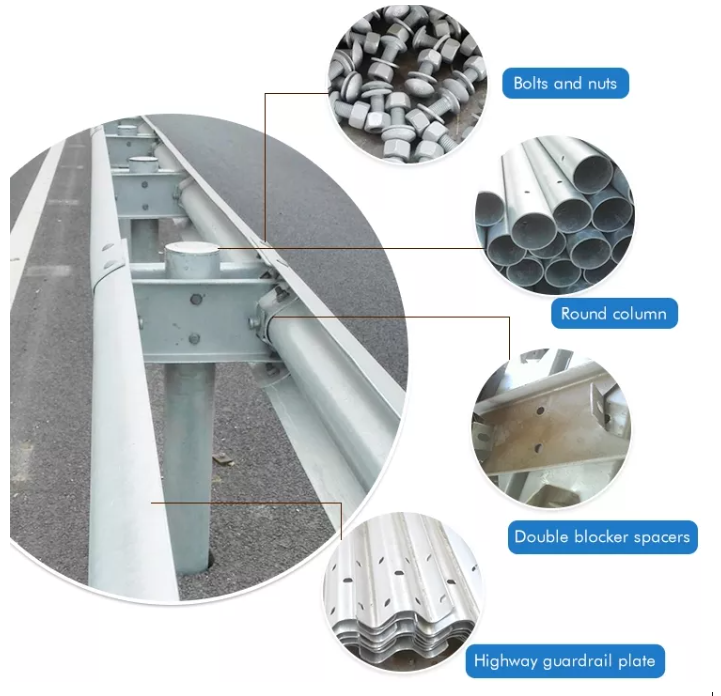

Typical Guardrail System Components
Corrugated steel guardrail beams
Steel posts and post caps
Spacers or blockouts
Bolts, nuts, washers and connectors
End terminals and transition sections
Reflectors and delineation accessories

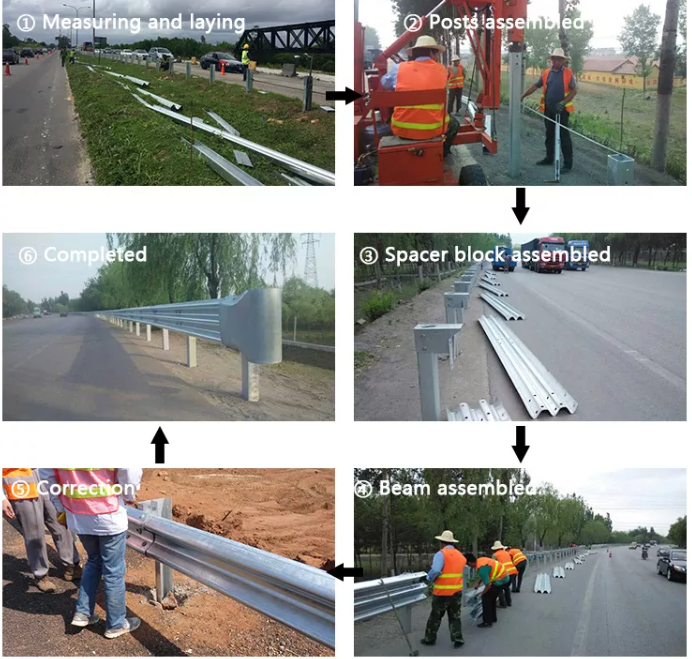

General Installation Process
1. Review the Project Design
Confirm the required beam profile, material thickness, coating, post type, post spacing, rail height, terminal design and total length. Curves, bridges, culverts and transition areas may require special components.
2. Survey and Mark the Installation Line
Check the road alignment, shoulder condition, underground services and obstacles. Mark post positions according to the approved drawings. Installation should not begin until conflicts with drainage, utilities and structures have been resolved.
3. Install and Align the Posts
Posts may be driven, placed in prepared holes or installed using another approved method depending on soil conditions and project requirements. Alignment, verticality, embedment and spacing should be checked before the beams are fully tightened.
4. Assemble Beams and Hardware
Install the beams in the correct direction and sequence specified by the design. Use the approved bolts, washers, spacers and connection details. Damaged coating and incorrectly installed hardware should be corrected before acceptance.
5. Complete Terminals and Transitions
End terminals and transitions are critical system elements. They should match the approved design and be installed by trained personnel according to the applicable instructions and project standard.
Inspection Points
Beam profile, thickness and coating match the approved specification.
Post type, spacing, embedment and alignment are correct.
Rail height and distance from the roadway follow the drawings.
Bolts and connection hardware are complete and correctly installed.
Terminals, transitions and reflectors match the approved system.
Transport or installation damage has been identified and addressed.
Information Required for a Guardrail Quotation
Provide the destination country, applicable standard, beam profile, steel thickness, coating requirement, post and spacer type, post spacing, total length, terminal quantities, drawings and destination port. If the specification is incomplete, clearly identify which items require technical confirmation before pricing.
